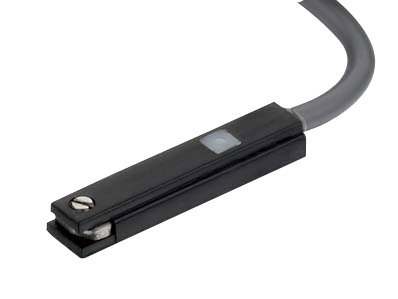

PVMS-31R, T-slot, Reed Switch, 5m cable

Name: PVMS-31R, T-slot, Reed Switch, 5m cable
SKU: PN10631
Price: 13.54 EUR
Availability: InStock
Rating: 4.5 (17 reviews)

€ 13,54 Exclusive of VAT View volume discount
€ 16,38 Inclusive of VAT

In stock
From € 7,90

PVMS-31R, T-slot, Reed Switch, 5m cable
In stock Own warehouse, stock on demand possible. Personal advice

In cart

Product information

|

Downloads

|

Specifications

|

Combinations

|

Accessories

Product information
Position detector (Reed contact) for pneumatic cylinders. This position detector is suitable for different types of cylinders. See specifications. You can find any associated mounting brackets with accessories.

Downloads

Sensor PVMS-31 (.STEP)

Specifications

Article number

PN10631

Function

Reed switch

Sensor type

With contact

Connection

3-core cable

Switching frequency (Hz)

200

Detection point

13 mm from the end side

LED indication

Red

Cable length

5m +/- 10 mm

Shock resistance

50 G

Protection class

IP67

Dimensions LxWxH (mm)

29x6.2x4.3 mm

Cable

PVC cable black (Oil resistant)

Suitable for cylinder type

PVFVBC; PVEXSM; PVEXSWM; PVSF; PVSFM; PVIA

Suitable for SMC/Festo cylinder type

DNC; CP95; DPZ; CXSM; CXSWM; DSNU; C85

Minimum operating temperature (°C)

-10

Maximum operating temperature (°C)

+70

Voltage

5-240V AC/DC

Combinations
This product has no combinations (yet).

Accessories
This product has no accessories (yet).
